Elsafe Pathfinder

The new Pathfinder system from Elsafe is the result of our 25 years' experience in supplying cable management products, and offers a complete floor-to-desk, floor-to-ceiling or ceiling-to-desk vertical cable management solution.

Pathfinder provides an ideal solution where power and data services are distributed in the ceiling.

Using our custom designed Ceiling Collar and Desk Flange, Pathfinder provides Total cable protection from ceiling void to pathway cable tray

Ceiling to desk umbilicals allow greater freedom for desk positioning (below ceiling apertures) than solid power poles, where CAD floorplans and on-site installation inevitably differ.

Pathfinder ceiling collar gives a clean finished look when pathfinder drops through false ceilings. Designed to split in half, the ceiling collar can be clipped around pathfinder after it has been hung and cables zipped in Pathfinder Desk Flange simply clips into a 102mm aperture, securing the base and allowing cables safe passage into a cable tray under the desk.

Key Features :

• A unique Pathfinder grommet for feeding under floor cables directly into the umbilical
• Extendable sections to allow fixed desk, height adjustable desk or ceiling termination
• A wide range of floor, desk and ceiling fixing options to provide total cable management of cables
• Internal segregation for power and data cables to comply with BS regulations

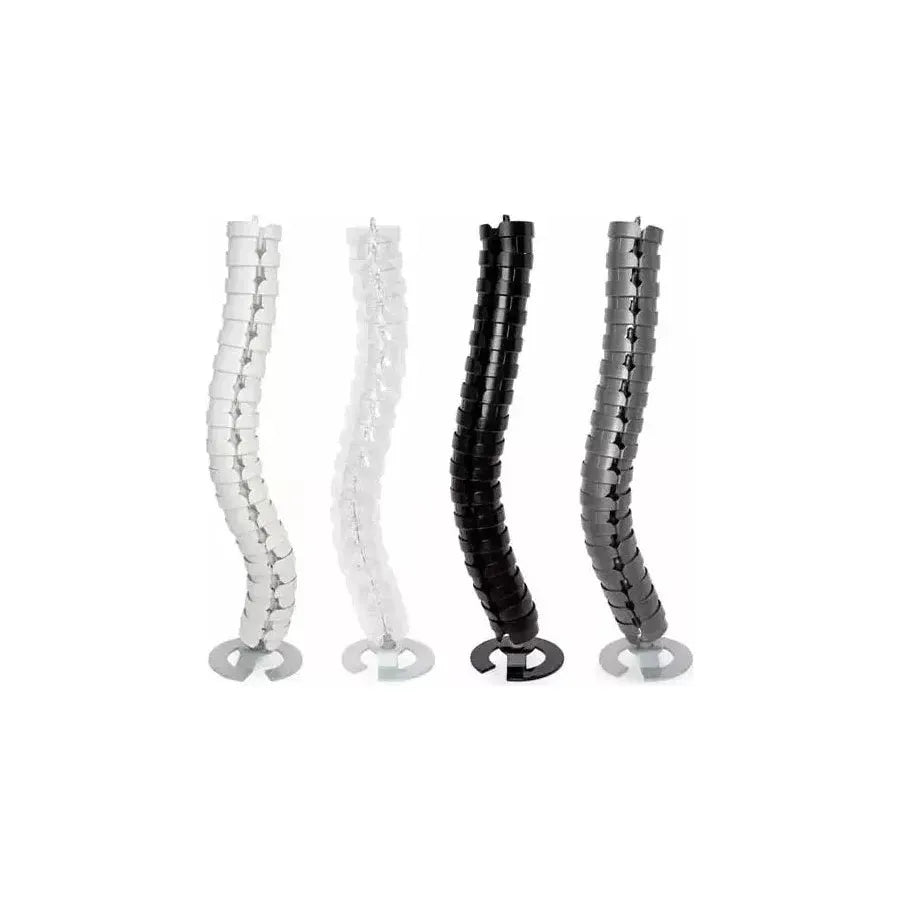

• Flexible umbilical in clear, white, black or silver polycarbonate

Fixing Options;

Pathfinder Top Fix can be: screwed to the underside of a desk top or meeting table; snapped into a 25mm hole in steel/plastic panels (such as Pathway Adapter); or, (with integrated wire gripper) used to tension a ceiling hung umbilical

Pathfinder bottom fixing can be; screwed to any suitable surface; used with the Pathfinder Weighted Base; or, clipped into the Pathfinder Desk Flange for ceiling hung applications

Where a rigid umbilical column is required, support rods can be used to limit, or even prevent flexing. This feature also allows users to be creative in the design of Pathfinder routing

The pathway Adapter can be used to fit pathfinder onto any compatible cable tray for total cable management
